Ford Bronco (1966-1977) Kit de barres de toit Slimline II
KRFB001T

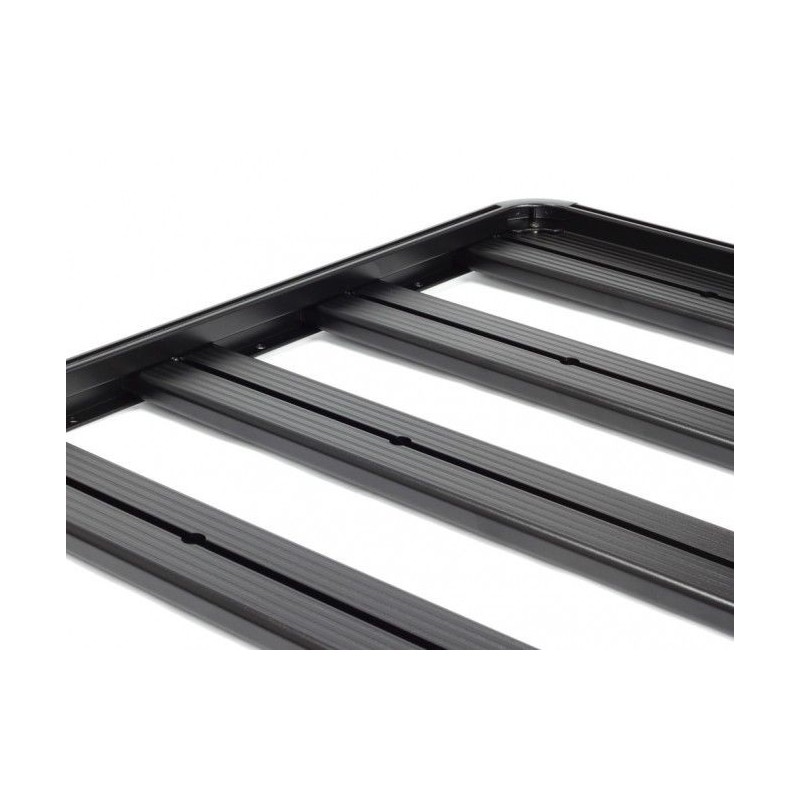

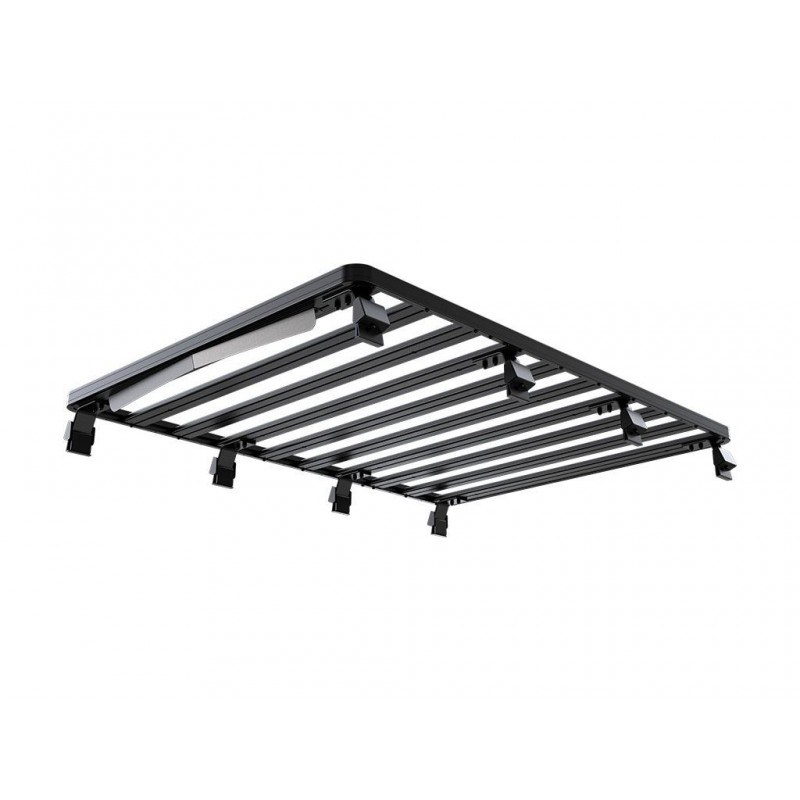

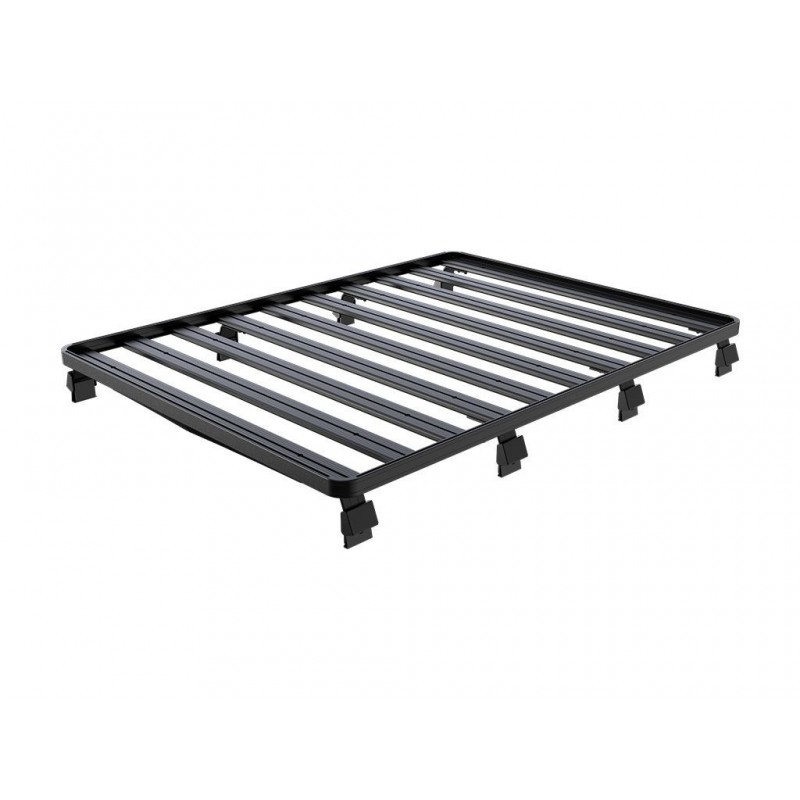

Ce kit porte-bagages de toit complet Slimline II de 1964mm / 77.3 'de long pour votre Ford Bronco contient un plateau Slimline II et un déflecteur de vent, ainsi que 8 pieds à montage en gouttière pour le montage du plateau sur le véhicule. S'installe facilement. sans perçage requis.
Tous les kits de rack Front Runner contiennent des instructions d’installation ainsi que tous les composants nécessaires au montage du plateau Slimline II sur votre véhicule.
Consisting of:
4 x LASS103 - No 3 Leg 155mm (Pair) - by Front Runner
1 x RRSTM10 - Slimline II Tray - 1475mm(W) X 1964mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 34kg (74lbs)

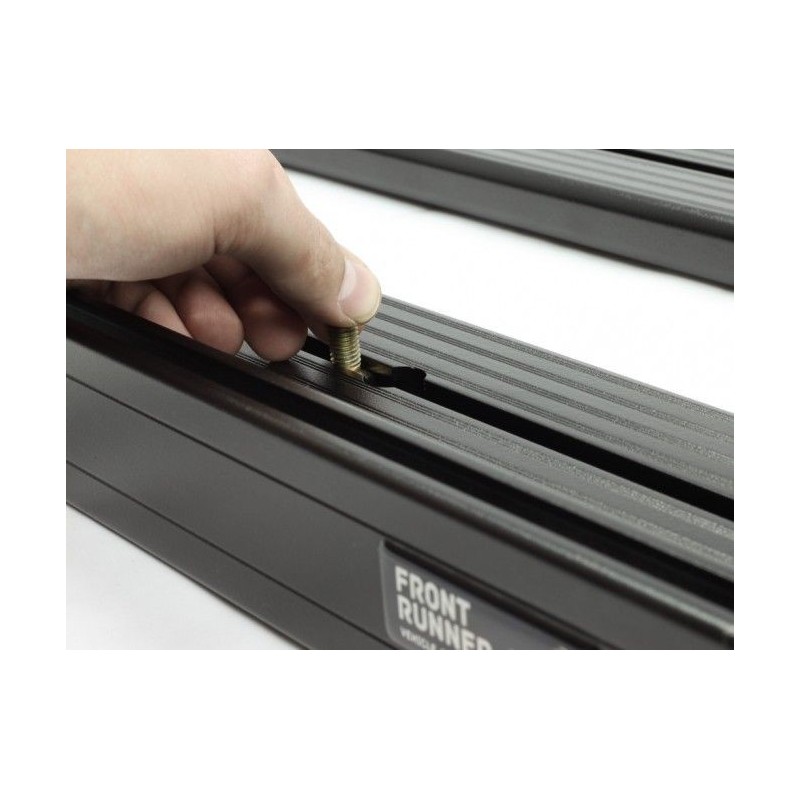

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width455mm (18")
Length1610mm (63")
Height 250mm (10")
Shipping Weight:
Weight39.1kg (86.0lbs)
